● Thorough analysis with comprehensive parameterization

● Large screen for easier reading

● Temperature up to 600 °C

● Matrix up to 384x288

IP 54 leakproofing

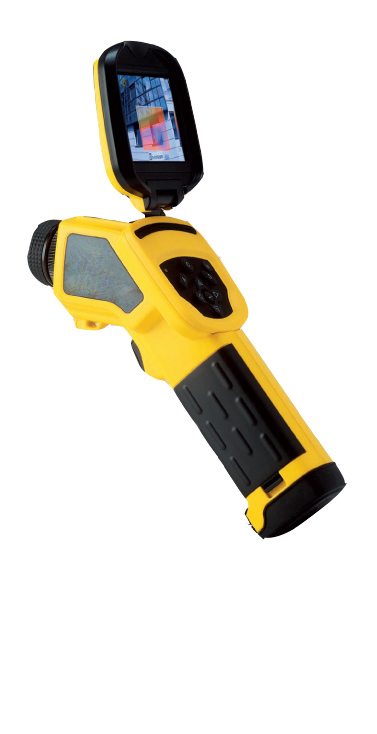

excellent legibility thanks to its multidirectional screen,

even in places where access is difficult

comfortable handling due to its pistol shape

PERFORMANCE:

● automatic detection of hottest/coldest point

● parameter settings affecting measurement

         • adjustable emissivity

         • adjustment of measurement distance

         • parameters for defining relative humidity and ambient temperature

● parameterizable alarms

● isotherm function

● storage capacity of 1,000 radiometric images organized in 250 folders and back-up on SD card with the C.A 1886 and C.A 18882.63 7.89 26.33

IFOV (mm) 0.22 0.66 1.10 2.20 4.40 13.22 22.04 66.12 220.40

PPOM (mm) 0.66 1.98 3.30 6.60 13.20 39.66 66.12 198.36 661.20

ELECTRICAL APPLICATIONS

Circuit-breaker / Generator

• detection of damaged fuses and bad connections

• verifi cation of correct heat diffusion in the generator

MECHANICAL APPLICATIONS

Electric motors

• detection of internal component anomalies or malfunctions to prevent motor overheating

THERMAL APPLICATIONS

Water leaks / energy losses

• energy consumption monitoring / building inspections

• location of losses (heating, insulation, etc.)

INFRARED IMAGE / REAL IMAGE /

With the RayCAm Report software, you can combine your thermogram with a real image.

This allows you to identify the fault or dysfunction so that you can make the appropriate corrections!

The MixVision function is available on the C.A 1886 and C.A 1888 models. Users can reinitialize the merge function by modifying the IR / real percentage to suit your requirements and ensure clearly-interpretable reports: this percentage can be adjusted from 0 to 100% !

ANALYSIS MODE

This new mode is available on the C.A 1886 and C.A 1888. It can be used to open one or more images, add various analytical tools and obtain a summarized presentation of all the results in a table. This mode is useful for first-level analysis when you simply want a rough idea of the temperature values without saving the analyses.

GENUINE, ACCURATE ANALYSIS

If a characteristic on the radiometric image is changed, the other values are automatically recalculated.

RayCAm Report allows you to define the emissivity of each point in the thermogram, an essential feature when the thermogram contains different materials.

Choose a different confi guration for each analytical tool inserted on your thermogram.

A wide range of possibilities:

● specify a different emissivity from that of the thermogram as a whole

● display a value label next to the tool

● display the Max/Min temperature

within an area of analysis

DELIVERED WITH THE RAYCAM REPORT SOFTWARE

RayCAm Report is the ideal tool for analysing the results and creating customized reports. Its interface is so simple that anyone can learn to use it very quickly.

All the analysis functions are accessible via the toolbar. Depending on their requirements, users can position various elements:

● cursors (automatic display of the temperature at the point selected)

● thermal profile (automatic display of the Min/Max/Average temperatures of the line)

● a square or circle for area analysis (ideal for Min/Max/Average temperature comparisons between terminals, for example)

● Result tables quickly display all the data / analytical tools on the thermogram automatically

● The «Max» function automatically indicates the hottest point in the whole thermogram or in a predefined area of analysis.

There are now also new functions available with the C.A 1886 and C.A 1888:

● Polygons and polylines for more precise analysis of certain areas in the thermogram

● A barchart for studying the temperature distribution according to several intervals

A WIDE RANGE OF ACCESSORIES FOR MEASUREMENTS IN OPTIMUM CONDITIONS:

● USB cable for data transfer onto a PC

● Video cable for display on external screen

● RayCAm Report software for processing the data

This set of accessories is supplied as standard with your RayCAm in a hard case.

● Operation on internal batteries or mains adapter*

● Bluetooth accessories

● Sun-shade* to make the screen easy to read even in bright lighting

● Tripod adapter* for hands-free use and operation in a fixed position

TECHNICAL SPECIFICATIONS

DETECTOR SPECIFICATIONS

Detector 160 x 120 384 x 288

Type UFPA microbolometer, 8-14 microns

Frequency 50 Hz

Sensitivity (NETD) 0.1 °C to 30 °C 0.1 °C to 30 °C 0.08 °C to 30 °C

TEMPERATURE MEASUREMENTS

Standard temp. range -20 °C to 250 °C -20 °C to 600 °C

Temp. range with option 1500 °C

Accuracy ±(2 °C + 2 %)

IMAGE PERFORMANCE

IR image

Field of view 20° x 15° 24° x 18°

Spatial resolution 2.2 mrad 1.3 mrad

Min. focusing distance 10 cm

Focusing Manual

Real image No Yes

Min. focusing distance - 10 cm

IR-Merge - Complete IR-Merge functions

Image size - 640 x 480 pixels

OTHER FUNCTIONS

Emissivity correction Yes

Parameter settings Ambient temperature in °C, distance, humidity

Measurement tools 3 manual cursors + 1 auto Max / Min detection, Isotherm,

High/Low alarm

Comments - Voice annotations (option)

Storage 1,000 (radiometric format) + 250 folders

Storage type Internal 2 GB mini-SD Card

Screen 2.5 inches, multidirectional 3.5 inches, multidirectional

GENERAL

Battery Battery life: 2.5 hrs Battery life: 3 hrs

(continuous use) (continuous use)

Battery recharging External battery charger

Protection IP 54
