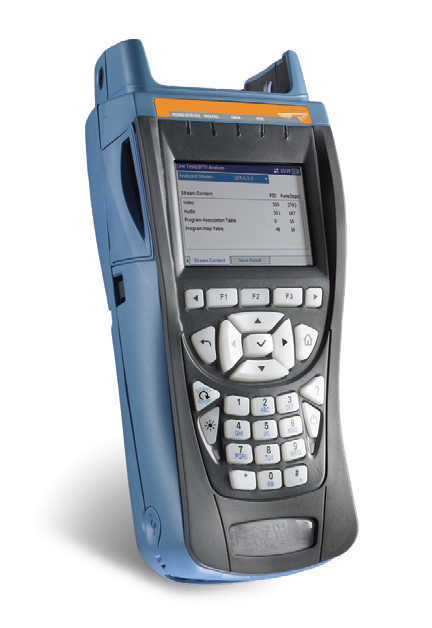

The more-in-one 30 MHz copper, DSL and triple- play testing solution

Based on industry-leading Broadcom DSL chipset for proven VDSL2 and ADSL2+ interoperability and support for impulse noise protection (INP) and Broadcom PhyR™ confi gurations.

Features/Benefits

-       Multilayer copper, DSL and triple-play analysis, for minimized CAPEX and OPEX

-      Affordable triple-play testing over VDSL2 and ADSL1/2/2+ including Ethernet in/out operation for FTTx deployments

-       30 MHz spectrum analysis for single-ended VDSL2, for a truck roll reduction

-      DSL, IPTV and VoIP service assurance using a comprehensive range of metrics such as DSL link speeds, multilayer fault analysis histogram, MDI as well as IP packet loss and jitter

-       VDSL2 and ADSL2+ Annexes A, B, L and M support for ultimate network flexibility

Applications

-       Detection of potential bottlenecks on subscriber loops to ensure high-quality, consistent and error-free triple-play services (IPTV, Internet and VoIP)

-       30 MHz spectrum analysis for circuit qualifi cation in any VDSL2 band plan (12, 17, 30 MHz)

-      Loop and fault analysis including LoopMapper using proven TDR and FDR techniques for VDSL2 or ADSL2+ prequalifi cation

-       Triple-play deployment verifi cation inside the subscriber premises using Ethernet in/out testing

Single-Ended Video and Data Rate Analysis

This equipment single-ended video and data rate analyzer software option allows you to determine the xDSL data rates that a copper loop will support, prior to connecting/provisioning the circuit. With this new feature, you can evaluate a circuit’s ability to carry ADSL2+ bit rates at the CO or the customer premises and find out how many IPTV channels can be supported during the pre-deployment stage.

Thanks to this industry-leading option, you can:

-        Prequalify and validate circuits without having to install terminal equipment

-        Reduce the number of false positives (failed installs)

-        Decrease the cost of identifying up-sell opportunities (customers wanting newer/faster video and network applications such as ADSL2+ and IPTV)
