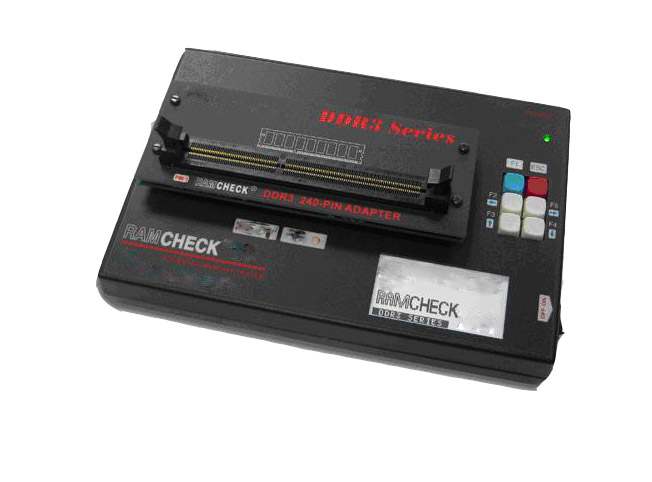

Key Features DDR3 CHECK  Base

    Supports all Registered, Unbuffered, ECC and non-ECC Parity memory devices.

    Reliable and low-cost, simple to operate.

     Rugged test sockets (with optional adapters).

    Efficient USB interface.

    SPD Wizard for programming, editing and saving SPD files.

    Fast - tests a 512MB DIMM in 11 seconds (Basic test).

    Operate as a standalone unit or connect to a PC to print and log test results.

    Large high contrast display.

    Free firmware upgrades available online.

    Extensive selection of optional adapters for DDR3, DDR2, DDR, SODIMMs, SIMMs, chips and more. Works with all existing DDR3 CHECK adapters.

 USB DDR3 CHECK Specifications

 Basic Test

     Identifies module type, size, configuration, voltage and frequency

    Checks open/short, addressing and identifies defective bits

 Extensive Test

    Voltage Cycling

    Multi-Burst Test

    Voltage Bounce

    March Up/Down

    CAS Latency

    Additive Latency

   Relative Refresh/Cell Leakage

    Relative Voltage Spikes

    Temperature Stress Test

    Trcd Functionality

    Rtt On-Die-Termination

    Write Leveling

 Auto-Loop Test

    Module is endlessly tested with different pattern bits

    Detects pattern sensitivity problems

    Excellent for burn-in procedure

 Addressing Capability

    Maximum 16 Row/16 Column addresses. Currently, 16GB modules can be tested. Test support is added as larger modules are introduced to the market.

 Clock Frequency

    DDR3 clock to 1333MHz, functional tests at 800MHz and 1066MHz, compatible with higher speed modules (with DDR3 adapter).

    DDR2 clock to 1066MHz, functional tests up to 866MHz (with DDR2 adapter).

    DDR clock to 533MHz, functional tests up to 533MHz (with DDR Pro adapter).

    SDRAM clock 184 MHz, functional tests up to 166MHz (with SDRAM adapter).

Data Bus Width

  With optional adapters: x144, x72,x64, x40, x36, x32, x18, x8, x4, x1.

 Timing Range :   0-155.5nS

Timing Resolution : 0.25nS to 0.5nS

 Programmable Parameters

    Size

    Timing

    Voltage

    Patterns

    Refresh

    Mode

 SPD Programming

    Edit/program/save SPD data, unlimited SPD files

    Production Mode for automated SPD programming

    Convenient SPD Wizard

 Error Display

     128 x 64 pixel LCD (F-STN/Black & White mode, Transflective) with LED backlighting and 6 o'clock view direction. Multiple LED indicators and status tones.

 Upgrades

     Free firmware and PC software upgrades via the Internet

     Optional new adapters for a wide range of memory formats are continuously developed. Will work with upcoming DDR3 adapter.

 Operating Temp/Humidity

      3C to 32C (40 F to 90 degrees F), 20% - 80% non-condensing

Power Requirement

       100-250VAC/47-63Hz. A Universal Switching Power Supply for 7V/4Amp is included.

 Dimension/Weight

     9.5" x 6.5" x 3" (W x L x H)/3.5 lbs (10 lbs shipping weight)

  Warranty

     1-year limited warranty
