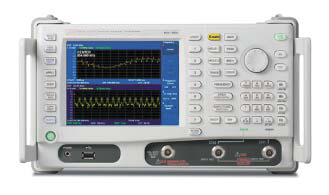

This is the industry’s first metrology tool that enables comparative measurement/analysis of the signals from two channels on the basis of their time, amplitude,
phase, and frequency domains by simultaneous and synchronized measurement.
This Cross Domain Analyzer has the following features and functions:
● Two-channel RF input and wide frequency range
● The best-in-class time domain analysis bandwidth of 40 MHz
● Vector operation that allows composition/decomposition
This Series allow the users to easily measure and analyze multiplexed/mixed/interfered signals so that complex signal analyses that are conventionally difficult to perform, such as multipath analysis, electromagnetic field decomposition, and inter-circuit interference, can be carried out. This Series consists of analyzers applicable to a wide variety of fields such as broadcasting, telecommunication, and EMC.
Specifications:
Frequency
---------------------------------------------------------------------------------------------------------
Frequency range
L-input
Frequency range: 9 kHz to 8 GHz
Frequency band: 9 kHz to 3.1 GHz (band 0)
3.0 GHz to 8.0 GHz (band 1)
Pre-Amp: 10 MHz to 8 GHz
H-input
Frequency range: 10 MHz to 43 GHz
Frequency band: 10 MHz to 3.1 GHz (band 0, N = 1)
3.0 to 8.0 GHz (band 1, N = 1)
7.8 to 14.573 GHz (band 2, N = 2)
14.4288 to 28.0 GHz (band 3, N = 4)
27.8 to 43.0 GHz (band 4, N = 6)
------------------------------------------------------------------------------------------------------------------
Frequency reference stability
Aging rate: <±2 x 10-6/year
Temperature stability: <±2.5 x 10-6 (0 to 50°C)
-------------------------------------------------------------------------------------------------------------------
Frequency span
Range: Zero span, 5 kHz to Full Freqency Sweep,
100 Hz to 40 MHz FFT, CBW step
Accuracy: <±1%
----------------------------------------------------------------------------------------------------------------
Spectrum purity: (-85 + 20 LogN) dBc/Hz, at offset 10 kHz,
pan ≤200 kHz
-----------------------------------------------------------------------------------------------------------------
Resolution bandwidth
Range: 100 Hz to 3 MHz Frequency Sweep,
1-3 steps
1 Hz to 400 kHz FFT, CBW/100
Accuracy: <±12%
-----------------------------------------------------------------------------------------------------------------
Video bandwidth range: 10 Hz to 3 MHz (1-3 steps)
------------------------------------------------------------------------------------------------------------------
Sweep
------------------------------------------------------------------------------------------------------------------
Sweep time
Setting range: 20 ms to 1000 s (spectrum mode)
50 μs to 1000 s (zero span)
Accuracy: <±2%
-------------------------------------------------------------------------------------------------------------------
Sweep mode: Continuous, single, gated
------------------------------------------------------------------------------------------------------------------
Trigger source: Free run, video, external, IF
-------------------------------------------------------------------------------------------------------------------
Amplitude range
--------------------------------------------------------------------------------------------------------------------
Measurement range
L-input: Displayed average noise level to +30 dBm
H-input: Displayed average noise level to +10 dBm
----------------------------------------------------------------------------------------------------------------------
Maximum safe input level
L-input
Pre-Amp OFF: +30 dBm (attenuator ≥10 dB)
Pre-Amp ON: +13 dBm (attenuator 0 dB), ±15 VDC max.
H-input: +10 dBm (attenuator 0 dB), ±25 VDC max.
----------------------------------------------------------------------------------------------------------------------
Input attenuator range
L-input: 0 to 50 dB (10 dB steps)
H-input: 0 to 30 dB (10 dB steps)
----------------------------------------------------------------------------------------------------------------------
Detection mode: Normal, Positive peak, Negative peak,
Sample, RMS, and Average
----------------------------------------------------------------------------------------------------------------------
Amplitude accuracy
----------------------------------------------------------------------------------------------------------------------
Calibration signal
Frequency: 20 MHz
Level: -20 dBm
Accuracy: ±0.3 dB
-----------------------------------------------------------------------------------------------------------------------
Level measurement
accuracy: After automatic calibration,
image suppression OFF, pre-amp OFF,
at temperature
20 to 30°C, input attenuator 10 dB, reference
level 0 dBm, input signal level -10 dBm
L-input: Band 0: ±0.8 dB (frequency: 10 MHz to 3.1 GHz)
Band 1: ±1.0 dB (frequency: 3.1 to 8 GHz)
±1.5 dB (frequency: 9 kHz to 10 MHz)
H-input: Band 0: ±0.8 dB (frequency: 10 MHz to 3.1 GHz)
Band 1: ±1.0 dB (frequency: 3.1 to 8 GHz)
Band 2: ±3.0 dB (frequency: 7.8 to 14.573 GHz)
Band 3: ±3.5 dB (frequency: 14.4288 to 28.0 GHz)
Band 4: ±4.5 dB (frequency: 27.8 to 43 GHz)
------------------------------------------------------------------------------------------------------------------------------------
Dynamic range
-----------------------------------------------------------------------------------------------
Displayed average
noise level: Frequency ≥10 MHz,
reference level <-45 dBm, at RBW 100Hz
L-input
Pre-Amp OFF: Band 0: -123 dBm + 2f (GHz) dB
Band 1: -122 dBm + 1.2f (GHz) dB
Pre-Amp ON: Band 0: -138 dBm + 3f (GHz) dB
Band 1: -139 dBm + 1.4f (GHz) dB
H-input: Band 0: -121 dBm + 2f (GHz) dB
Band 1: -120 dBm + 1.5f (GHz) dB
Band 2: -111 dBm (typical: -118 dBm)
Band 3: -109 dBm (typical: -117 dBm)
Band 4: -105 dBm (typical: -112 dBm)
------------------------------------------------------------------------------------------------------------------------
1 dB gain compression: At frequency ≥10 MHz
Pre-Amp OFF: >-8 dBm
Pre-Amp ON: >-25 dBm
------------------------------------------------------------------------------------------------------------------------
Third order
intermodulation
distortion: -50 dBc (frequency >10 MHz, pre-amp OFF,
mixer input level -20 dBm,
2-signal separation >1 MHz)
--------------------------------------------------------------------------------------------------------------------------
Image/Multiple/
Out-of-band response: <-60 dBc (mixer input level -30 dBm,
image suppression ON, span <5 GHz)
-----------------------------------------------------------------------------------------------------------------------------
Residual response: -80 dBm (frequency >10 MHz, pre-amp OFF)
-----------------------------------------------------------------------------------------------------------------------------
RF inputs (CH1/2)
-----------------------------------------------------------------------------------------------------------------------------
L-input
Connector: N-type female
Impedance: 50 Ω (nominal)
VSWR: Input attenuator 10 dB
<1.7 : 1 (Frequency 10 MHz to 3 GHz, band 0)
<2.0 : 1 (Frequency >3.0 GHz, band 1)
-----------------------------------------------------------------------------------------------------------------------------
H-input
Connector: K type female
Impedance: 50 Ω (nominal)
VSWR: Input attenuator 10 dB
1.7 : 1 (typical, band 0)
2.0 : 1 (typical, band 1, band 2, band 3)
2.5 : 1 (typical, band 4)
------------------------------------------------------------------------------------------------------------------------------
Rear-panel Interface Specifications
------------------------------------------------------------------------------------------------------------------------------
Frequency reference input
Connector: BNC female
Impedance: 50 Ω (nominal)
Frequency: 10 MHz
Level: -2 to +16 dBm
-----------------------------------------------------------------------------------------------------------------------------
Frequency reference output
Connector: BNC female
Impedance: 50 Ω (nominal)
Frequency: 10 MHz
Level: >0 dBm
------------------------------------------------------------------------------------------------------------------------------
External trigger input
Connector: BNC female
Impedance: 10 kΩ (nominal), DC coupling
Level: 0 to +5 V
-----------------------------------------------------------------------------------------------------------------------------
External trigger output
Connector: BNC female
Level: +3.3 V (CMOS)
-------------------------------------------------------------------------------------------------------------------------------
IF output: IF output from CH1 only
Connector: BNC female
Impedance: 50 Ω (nominal)
Frequency: 21.4 MHz, 97.5 MHz
one of two frequencies, depending on
resolution bandwidth,
capture bandwidth
and capture synchronization mode.
-----------------------------------------------------------------------------------------------------------------------------
GPIB: IEEE-488 bus connector
-----------------------------------------------------------------------------------------------------------------------------
USB: USB 1.1
-----------------------------------------------------------------------------------------------------------------------------
Video output: VGA (D-sub15 pin female)
-----------------------------------------------------------------------------------------------------------------------------
LAN: RJ45 type, 10/100 base-T
-----------------------------------------------------------------------------------------------------------------------------
General Specifications
Operating environment range: Ambient temperature: 0 to +50°C
Humidity: RH 85% or less
(no condensation)
Storage environment range: -20 to +60°C, RH 85% or less
AC power input : Automatic switching to 100 VAC or
220 VAC
100 VAC: 100-120 V, 50/60 Hz
200 VAC: 220-240 V, 50/60 Hz
Power consumption: 150 VA or less
Mass: 10 kg or less (excluding options)
External dimensions
(W x H x D): Approx. 308 x 175 x 339 mm
(not including protruding parts)
Approx. 337 x 190 x 437 mm
(including the handle and feet)
Ordering Information
Main units
3 GHz Cross domain analyzer
8 GHz Cross domain analyzer
43 GHz Cross domain analyzer
Options
High-stability frequency reference source: OPT.20
EMC filter: OPT.28
Tracking generator (3 GHz): OPT.76
Tracking generator (6 GHz): OPT.77
Please be sure to read the product manual thoroughly before using the products.
Specifications may change without notification.
