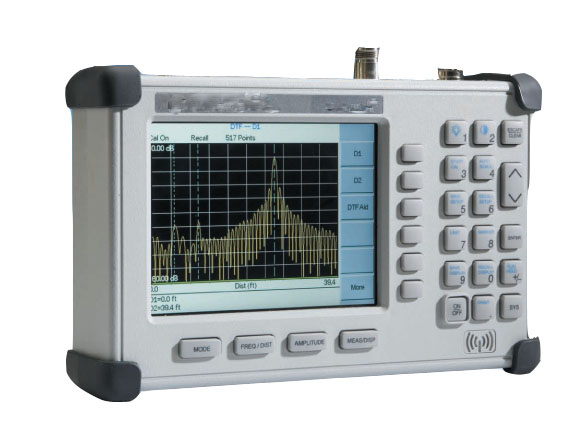

Rugged and Reliable

Because the equipment was designed specifically for field environments, it can easily withstand the day-to-day punishment of field use. The analyzer is almost impervious to the bumps and bangs typically encountered by portable field-equipment.

Easy-to-Use

This equipment operation is straightforward; measurements are obtained through a menu-driven user interface that is easy to use and requires little training. The large, and high-resolution TFT color display makes test interpretation easy and quick. A full range of markers enable the user to make accurate measurements. Limit lines simplify measurements allowing users Highlights.

Frequency Range: 25 MHz to 4 GHz

Measurements: Return Loss / VSWR, Cable Loss, Distance-To-Fault (DTF), Optical

 Sweep Speed: 2.5 msec / data point.

Accuracy: > 42 dB corrected directivity .

Display: TFT color with adjustable backlight.

RF Immunity: Performs accurate measurements in co-located cell sites.

Limit Lines: Single and Segmented Limit lines.

Language Support: Chinese, English, French, German, Japanese, Spanish.
