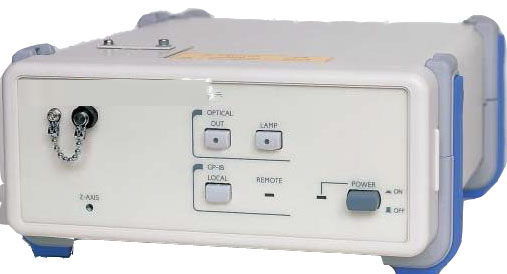

The white light source provides incoherent light to measure wavelength dependent loss characteristics for optical devices and optical fibers, in conjunction with an optical spectrum analyzer. The higher power density (more than 5dB at 1310 nm) compared to previous model allows significantly faster sweep time of the optical spectrum analyzer. The wide wavelength range 400 to 1800 nm provides various applications from visible band to all telecomm band.
High power: -40 dBm or more (at 50/125 µm MMF)
Optical output: Free space
High output stability of ±0.05dB
Specifications:
|
Wavelength range |
400 to 1800 nm |
|
Optical output level *1) *2) |
-40 dBm or more (50/125μm MMF : 2m, wavelength: 850 nm và 1310nm, spectral band width : 10 nm) -55 dBm or more (10/125μm SMF : 2m, wavelength 1550 nm, spectral band width : 10nm)
-58dBm/nm (typ.) (50/125μm MMF : 2m, wavelength range : 400 to 1100nm) -65dBm/nm (typ.) (10/125μm SMF : 2m, wavelength range: 700 to 1700 nm) |
|
Output stability *1 |
±0.05dB (23±2 °C, one hour) |
|
Functions |
Optical output : ON/OFF Lamp : ON/OFF |
|
Interface |
GP-IB |
|
Applicable optical connector |
FC/PC type |
|
Lamp |
Halogen lamp (DC12V/50W), Life: 50 hours |
|
Power requirement |
AC100 to 120V(±10%) /200 to 240V(±10%), 50/60Hz, Approx.100VA |
|
Environmental conditions |
Operation temperature : +5 to +40 °C Storage temperature : -10 to +50 °C Humidity : 80%RH or less (not condensation) |
|
Dimension and mass |
Approx. 212(W) _ 88(H) _ 250(D) mm, Approx. 3kg |
|
Accessory |
Power cord : 1, Instruction manual : 1, Halogen lamp:5, Hexagon driver : 1 |
