Power divider

Published by newgenco on
Mô tả:

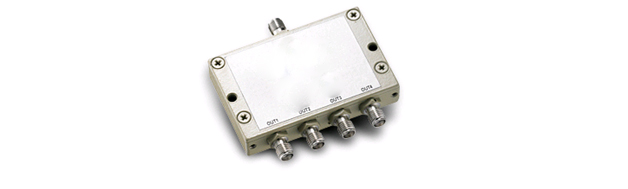

Power divider used to split a signal into two or more signals with smaller capacity. Includes 2 way power divider, 3 way or 4 way power divider.

WIDE BAND - 2 WAY POWER DIVIDER



Parameter

PD0510-2PS

PD1020-2PS

PD0825-2PS

PD2040-2PS

Comments

ELECTRICAL SPECIFICATION

Frequency
Range

0.5 ~ 1 GHz

1 ~ 2 GHz

0. 8~ 2.5 GHz

2 ~ 4 GHz



Insertion Loss

3.20 dB Max.

3.25 dB Max.

3.40 dB Max.

3.40 dB Max.



VSWR

1.2 : 1 Max.

1.2 : 1 Max.

1.3 : 1 Max.

1.3 : 1 Max.



Isolation

21 dB Min.

21 dB Min.

20 dB Min.

20 dB Min.



Amplitude
Unbalance

0.2 dB Max.



Phase
Unbalance

4° Max.

3° Max.

3° Max.

4° Max.



Power

10W Avg. @ 25°C (For VSWR 2:1)



Impedance

50Ω



MECHANICAL SPECIFICATION

Operating Temp.

-50°C + 85°C



Dimension :
WxDxH (mm)

63.49 x 38.1 x 12.7 Max.

38.09 x 38.1 x 12.7 Max.

48.0 x 48.0 x 12.0 Max.

38.09 x 38.1 x 12.7 Max.

Without
Connector

Connector

COM

SMA Female

Option

P1,P2

SMA Female

Finish

NCC With Silk Print





WIDE BAND - 4 WAY POWER DIVIDER



Parameter

PD0510-4PS

PD1020-4PS

PD0825-4PS

PD2040-4PS

Comments

ELECTRICAL SPECIFICATION

Frequency
Range

0.5 ~ 1 GHz

1 ~ 2 GHz

0.8 ~ 2.5 GHz

2 ~ 4 GHz



Insertion Loss

6.4dB Max.

6.6 dB Max.

6.8 dB Max.

6.6 dB Max.



VSWR

1.2 : 1 Max.

1.2 : 1 Max.

1.3 : 1 Max.

1.3 : 1 Max.



Isolation

20 dB Min.

20 dB Min.

20 dB Min.

18 dB Min.



Amplitude
Unbalance

0.2 dB Max.

0.2 dB Max.

0.3 dB Max.

0.2 dB Max.



Phase
Unbalance

4° Max.

4° Max.

4° Max.

6° Max.



Power

10W Avg. @ 25°C (For VSWR 2:1)



Impedance

50Ω



MECHANICAL SPECIFICATION

Operating Temp.

-50°C + 85°C



Dimension :
WxDxH (mm)

91.43 x 86.36 x 12.7 Max.

69.84 x 63.5 x 12.7 Max.

63.49 x 76.2 x 12.7 Max.

67.3 x 55.88 x 12.7 Max.

Without
Connector

Connector

COM

SMA Female

Option

P1,P2,P3,P4

SMA Female

Finish

NCC With Silk Print







NARROW BAND - POWER DIVIDER



Parameter

PD0810-4PS

PD1722-4PS

PD2327-2PS

PD2325-4PS

Comments

ELECTRICAL SPECIFICATION

Frequency
Range

800 ~ 1000 MHz

1700 ~ 2200 MHz

2300 ~ 2700 MHz

2300 ~ 2500 MHz



Insertion Loss

6.6 dB Max.

6.6 dB Max.

3.3 dB Max.

6.6 dB Max.



Impedance

50Ω



VSWR

1.2 : 1 Max.

1.2 : 1 Max.

1.3 : 1 Max.

1.3 : 1 Max.



Isolation

20 dB Min.

20 dB Min.

20 dB Min.

20 dB Min.



MECHANICAL SPECIFICATION

Operating Temp.

-50°C + 85°C



Dimension :
WxDxH (mm)

63.5 x 83 x 12

63.5 x 59 x 12

32 x 49 x 12

63.5 x 59 x 12

Without
Connector

Connector

COM

SMA Female

Option

P1,P2 (P3,P4)

SMA Female

Finish

NCC With Silk Print
